What We Did

• Performed a complete bumper-to-bumper inspection to identify safety and drivability concerns.
• Diagnosed and corrected front brake drag issues affecting vehicle stability.
• Repacked front wheel bearings and replaced wheel seals and inner axle shaft seals.
• Flushed contaminated brake fluid and replaced necessary rubber brake components.
• Evaluated rear locker operation and driveline performance.
• Rebuilt the factory three-on-the-tree steering column and shifter assembly.
• Diagnosed air conditioning system operation and identified electrical and refrigerant-related issues.
• Inspected and evaluated the Bronco's aging wiring system for reliability and safety concerns.
• Planned complete vehicle rewiring using an American Autowire Classic Update Kit.
• Removed and modified dash components for improved functionality with the existing roll cage.
• Refinished and painted the dash panel, glove box, and interior trim components.
• Reinstalled rear leaf springs and corrected previous suspension concerns.
• Replaced the water pump due to excessive wear and play.
• Prepared the Bronco for future 35-37 inch tire installation and wheel package upgrades.
• Designed custom fabricated bumpers built from heavy-duty 2x4 box tubing.

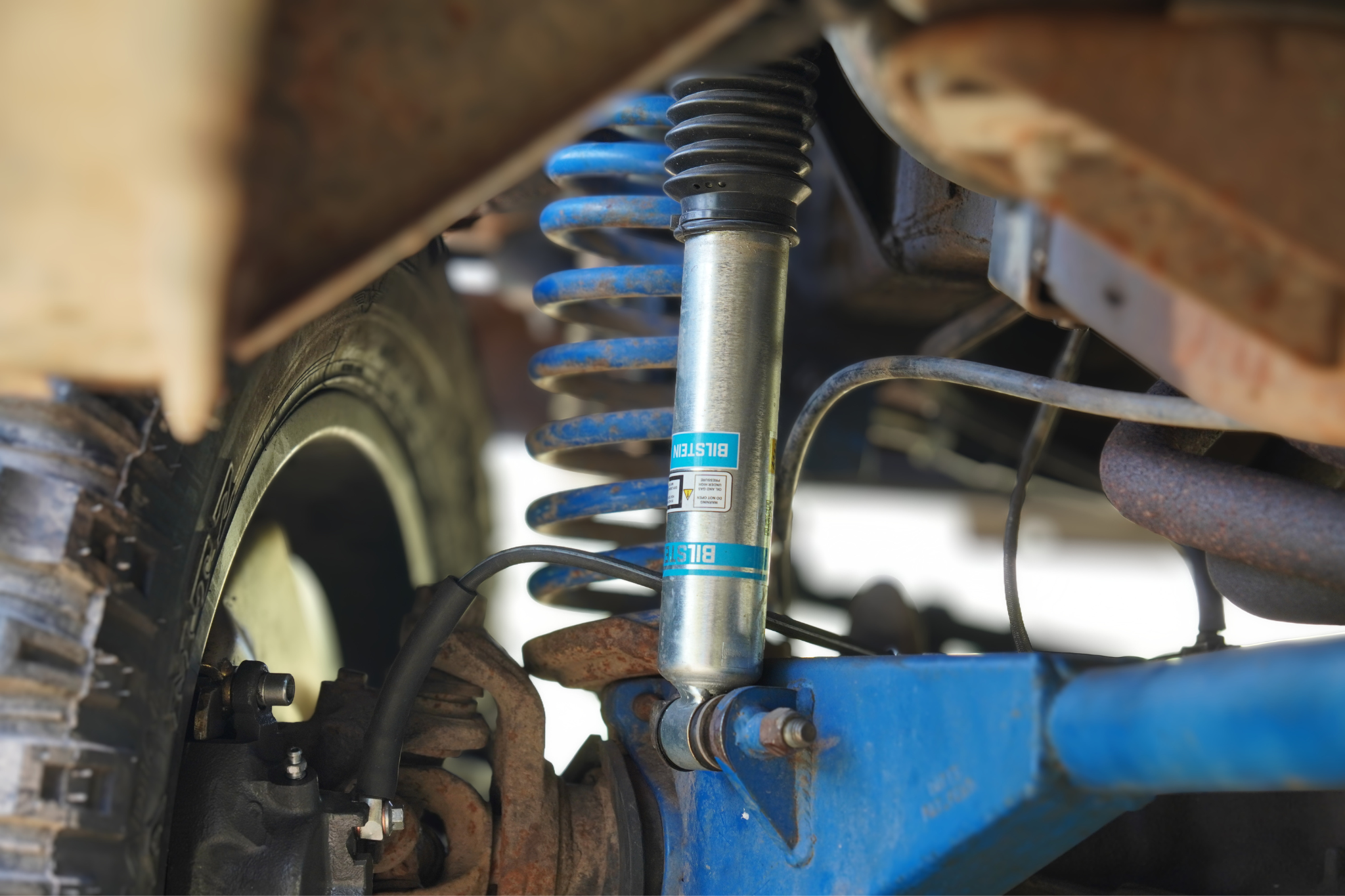

Major Steering and Suspension Improvements

One of the biggest concerns with this Bronco was severe bump steer. As the suspension cycled, the steering wheel would pull left and right, creating an unpredictable driving experience. Combined with front brake drag and concerns regarding the rear locker, the vehicle required a comprehensive evaluation of its suspension and steering systems.

Our team recommended upgrading the track bar system with a heavy-duty adjustable track bar, rebuilding and reinforcing the frame-side bracket, correcting hardware issues on the radius arms, and installing front and rear sway bars to improve stability both on and off the road.

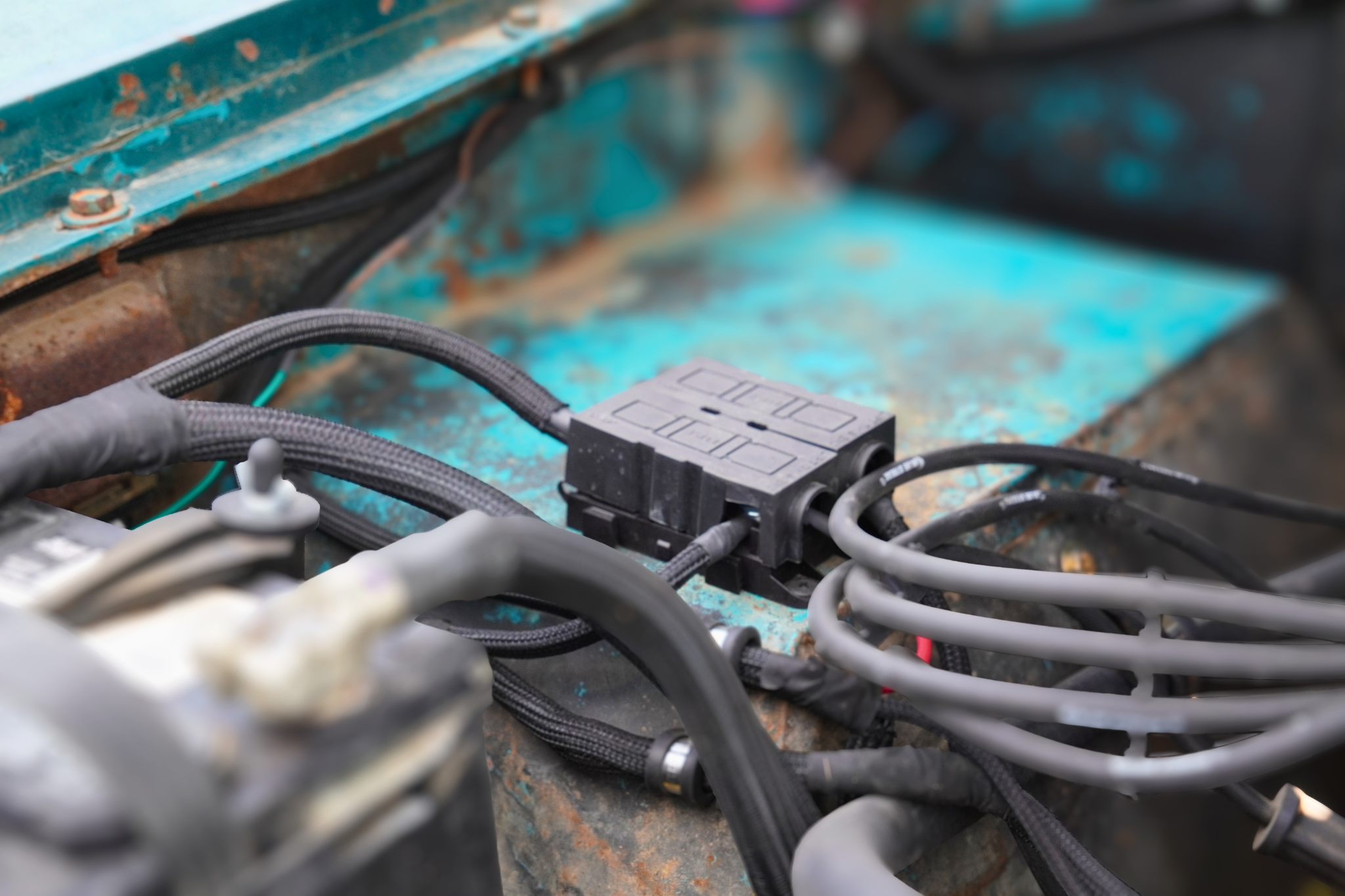

Electrical Restoration for Reliability

During inspection, we found that the Bronco's wiring system was showing its age. Brittle connectors, sun-damaged wiring, and outdated electrical components can lead to reliability issues and safety concerns in vintage vehicles.

To ensure long-term dependability, we recommended a complete vehicle rewire using the American Autowire Classic Update Kit designed specifically for 1966-1977 Ford Broncos. This upgrade modernizes the electrical system while maintaining the classic appearance of the vehicle.

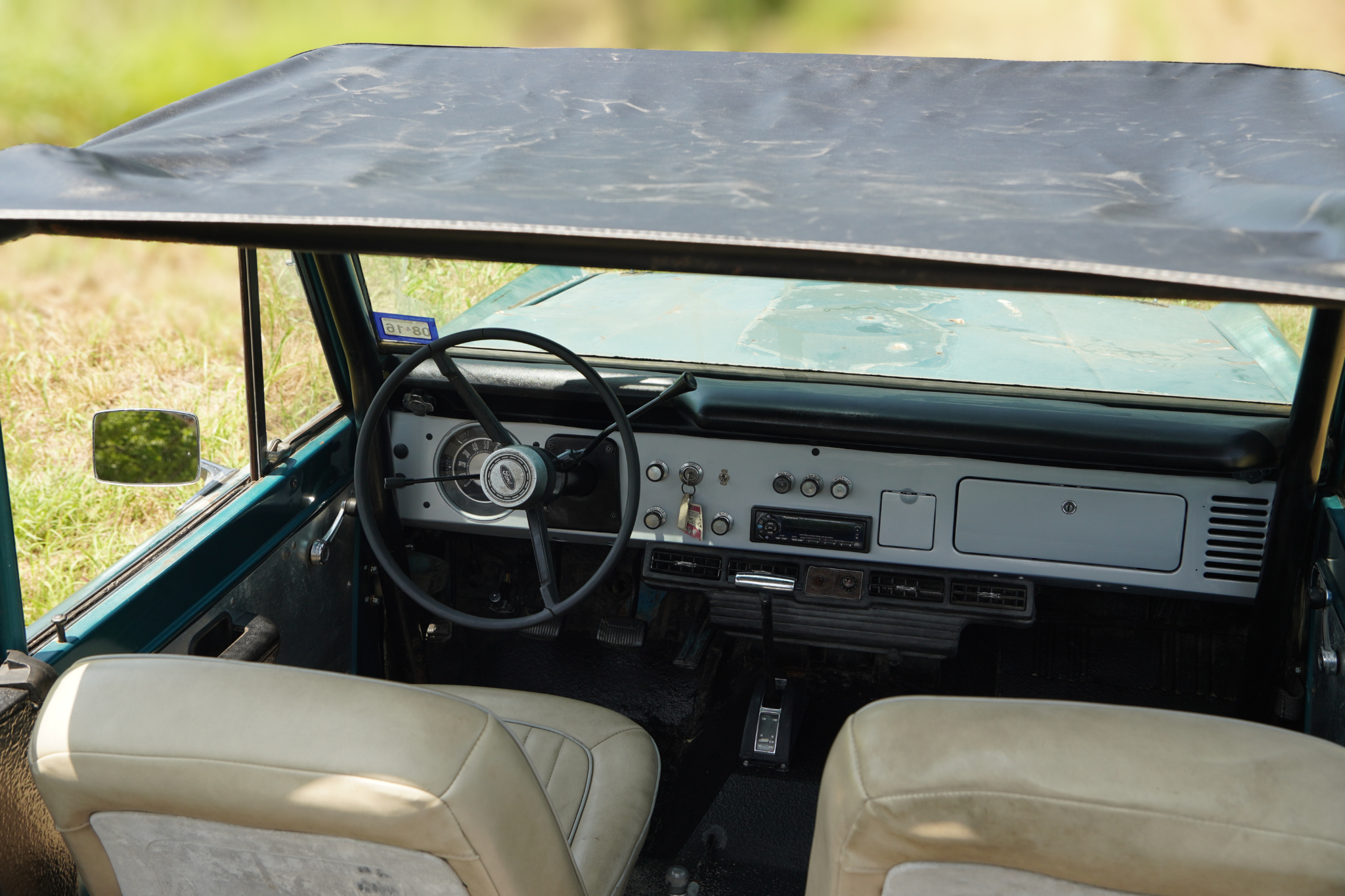

Interior and Dash Upgrades

The owner also wanted several custom interior improvements. The dash panel was removed, refinished, and painted, while the glove box and ashtray were refinished to match. Modifications were planned to allow the glove box to function properly with the existing roll cage while making room for future audio upgrades.

Due to the cage design, removal of the roll cage was necessary to properly access and modify the dash components.

Air Conditioning Diagnosis

Living in Texas means air conditioning is a must. During diagnostics, our technicians found the under-dash evaporator was not receiving power. After supplying power directly for testing, the system activated and produced cold air. Further inspection revealed low refrigerant levels and a possible restriction within the receiver drier.

Additional repairs were recommended to restore proper cooling performance and improve system reliability.

Preparing for Custom Styling Upgrades

In addition to the mechanical improvements, this Bronco is being prepared for a new wheel and tire package featuring 35-37 inch tires. Our team also designed custom fabricated bumpers using heavy-duty 2x4 box tubing with chamfered ends for a rugged, purpose-built appearance.

Additional upgrades included hood refinishing, water pump replacement, rear leaf spring installation, and correcting several issues left unresolved from previous work.

Why These Upgrades Matter

Early Broncos are iconic vehicles, but decades of use often leave behind worn components, outdated wiring, and drivability concerns. By addressing these issues now, this 1968 Ford Bronco will benefit from improved safety, better handling, increased reliability, and a more enjoyable driving experience.

The result is a Bronco that maintains its classic Ford heritage while delivering the confidence and performance expected from a modernized vintage build.

The Texas Vintage Trucks Difference

Whether it's a complete Bronco restoration, suspension upgrade, custom fabrication project, electrical restoration, or drivetrain overhaul, Texas Vintage Trucks is dedicated to keeping classic Ford trucks and Broncos on the road for future generations.

Every project receives the same attention to detail, craftsmanship, and commitment to quality that our customers have come to expect.
