Name: 1967- 72 Ford Pickup HDX Instruments
Brand: Dakota Digital
SKU: HDX-67F-PU
Price: 1625.00 USD
Availability: OutOfStock

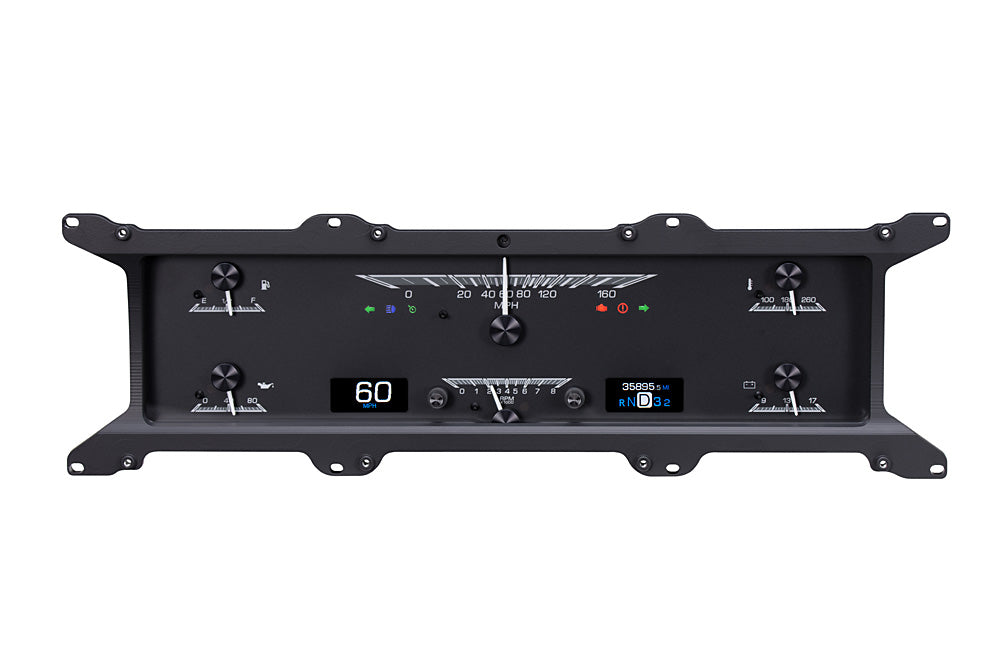

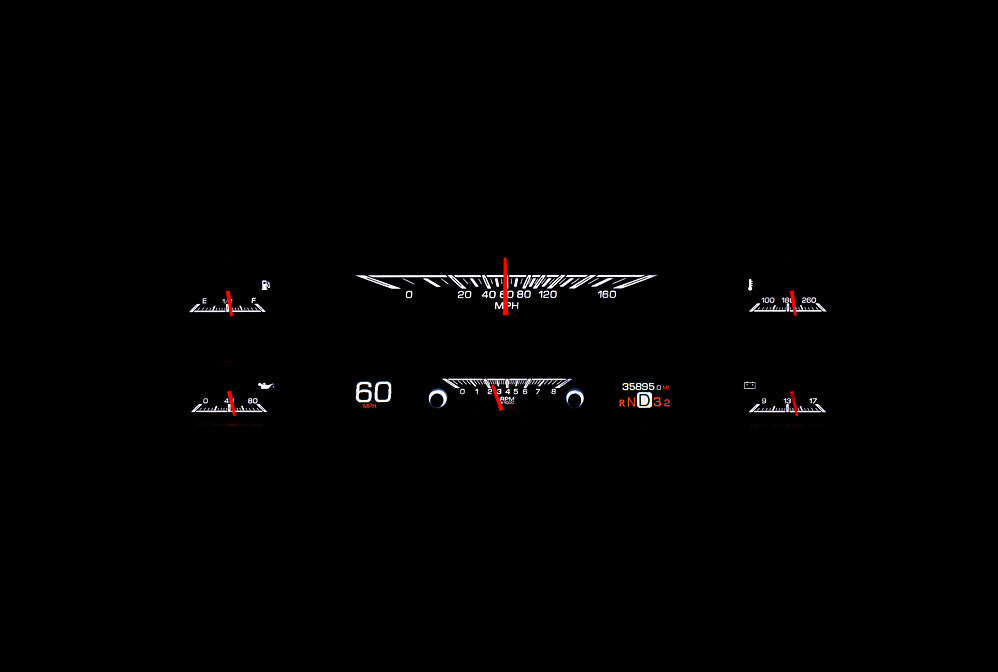

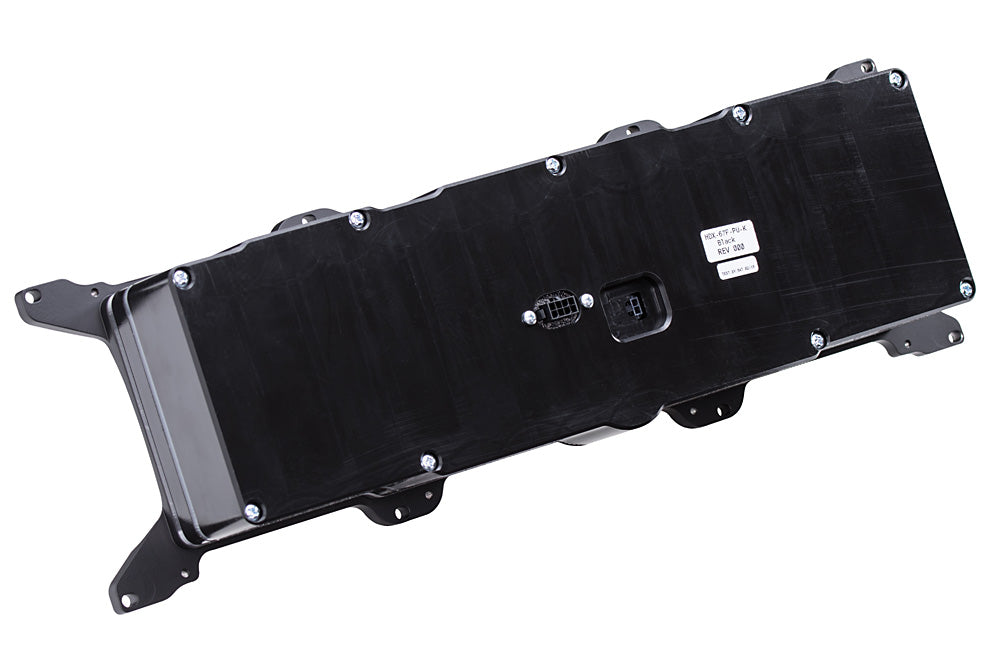

Known as the “bumpside” by Ford truck enthusiasts, the 1967–72 Ford pickups are a breath of fresh air compared to their GM counterparts. This direct-fit package is designed to work with both the plastic front bezel and the steel version, though neither are included. Supplied sensors and available expansion modules allow the system to integrate with the drivetrain of your choice, while the full-color TFT message center provides additional information at a glance. Black or silver face styling is available.

Available in your choice of black or silver alloy gauge-face styling, each HDX system allows you to select independent illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings can be adjusted using built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub features black nickel-plated spun aluminum to match the control buttons.

All HDX instrument systems include dead-faced indicators such as turn signals, high beam, check engine, cruise control, and parking brake, along with two user-definable indicators. Each gauge also features a red, settable warning light. The included central control box simplifies installation, using vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. Click the tabs below for a more in-depth look at the HDX series.

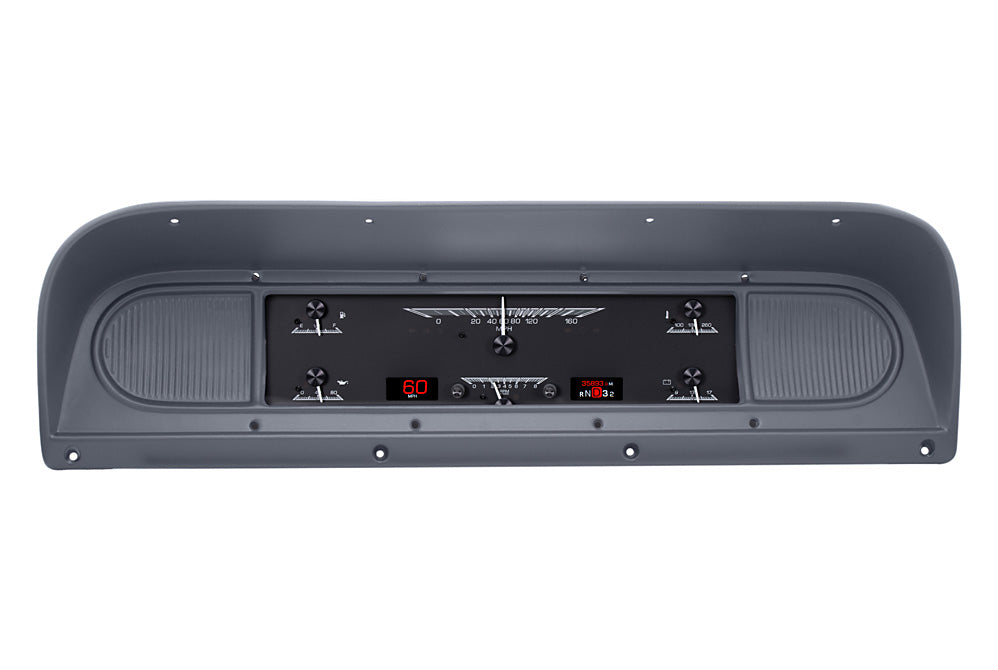

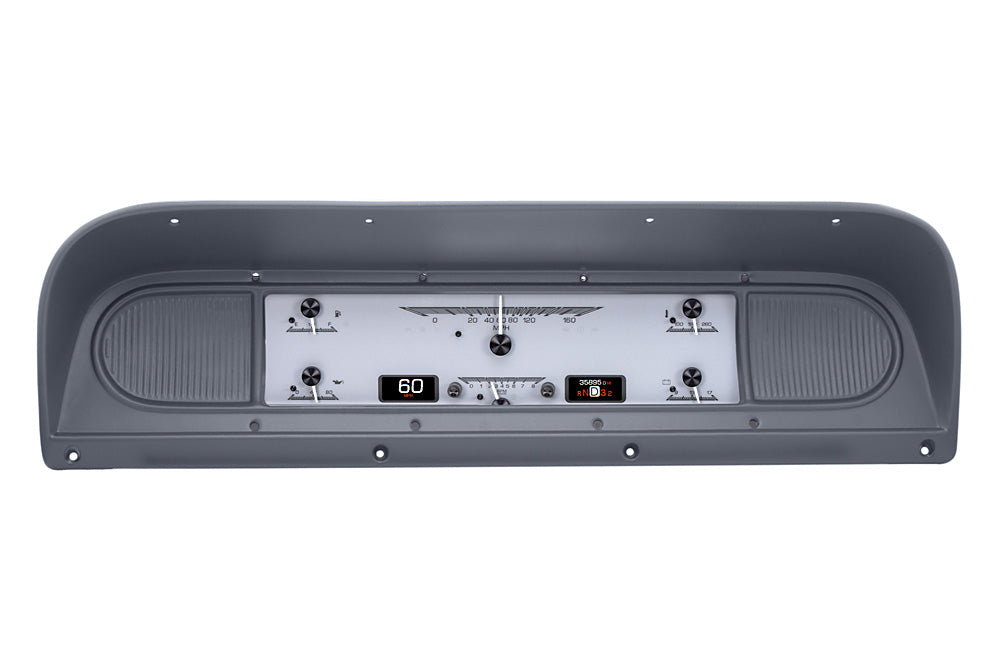

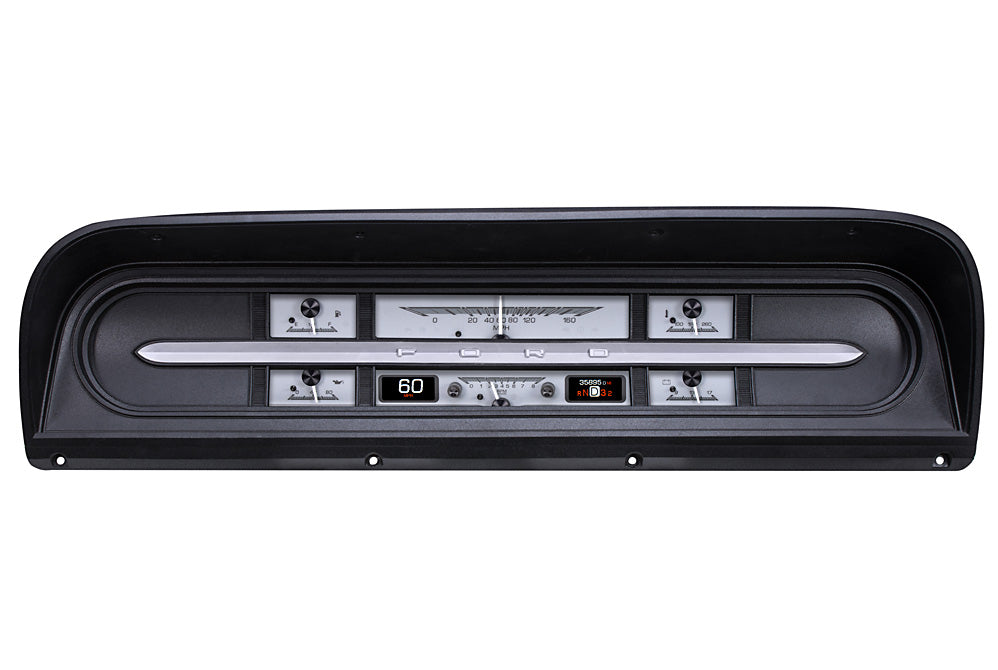

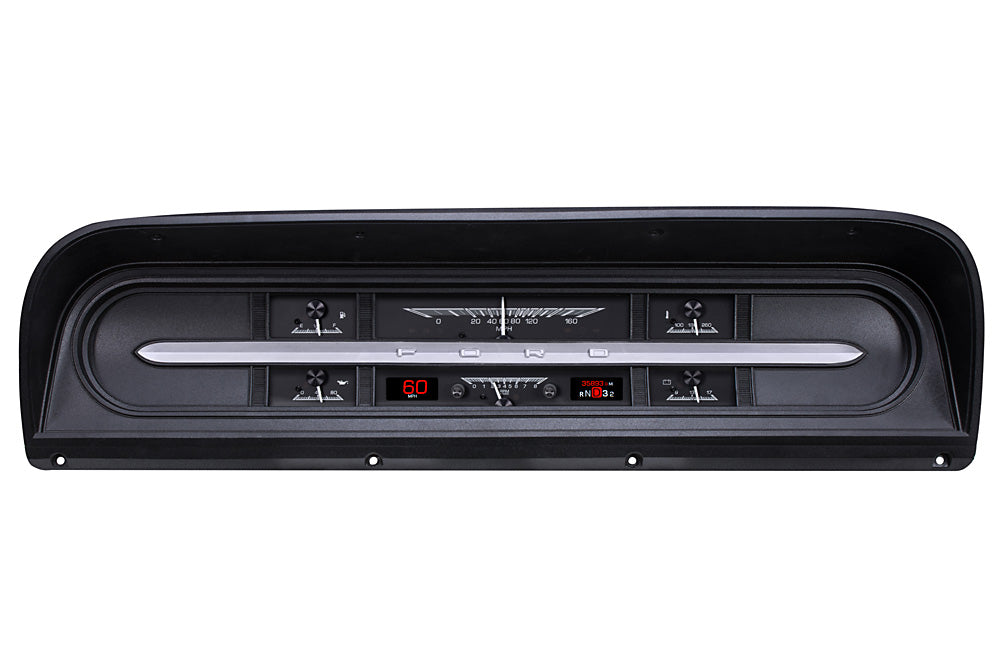

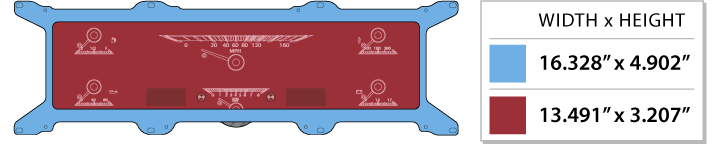

Bezel not included, shown for visual and presentation purposes only. The system uses an OEM or reproduction-style bezel.

Specifications

Analog Gauges

Speedometer
· 0–160 MPH (optional metric version 0–260 km/h)
· Split scale provides the resolution of a 120 MPH speedometer with a top-end range of 160 MPH

Tachometer
· 0–8,000 RPM

Oil Pressure
· 0–80 PSI

Water Temperature
· 100–260°F (optional metric version 40–120°C)

Fuel Level
· E, 1/4, 1/2, 3/4, F

Voltmeter
· 9–17 VDC

Clock
· 12-hour analog clock movement

Digital Message Centers

Standard Displays
· Odometer (one-time user settable, million mile)
· Dual (A/B) trip meter (0–9,999.9)
· Clock (12 hour)
· Estimated range / miles to empty

Performance Meters
· 0–60 MPH timer (0–100 km/h)
· 1/4 and 1/8 mile time
· 1/4 and 1/8 mile end speed (trap speed)
· High speed recall
· High RPM recall

Built-in Indicators

Indicators
· Turn signals (left/right)
· High beam
· Check engine
· Parking brake
· Cruise control (on / on & engaged when equipped)
· Gear position (optional GSS-3000 sensor required)
· 4x4 (when equipped)
· Wait to start (when equipped)
· Two auxiliary input indicators with user-programmable labels
· Each analog gauge sweep contains a red LED warning indicator (except speedometer)

Note:
· Not all OEM indicator lamp functions will be replaced
· Additional indicators can be repurposed from unused ones to suit your application

Lighting Technology

Colors
· Over 30 user-selectable color options
· Independently adjust needle color, sweep color, and TFT display color

Brightness
· Daytime and nighttime brightness controlled through the HDX setup menu
· Automatically toggled with headlight activation
· DIM-1 accessory available for rotary-style brightness control

Themes
· 12 factory preset color themes
· Option to fully customize all color zones

Technology
· Full LED backlighting for strong visibility day and night
· Sharp contrast for easy viewing
· Full RGB backlighting for custom color creation
· Ability to run separate daytime and nighttime themes
· Designed for both OE-style appearance or bold custom looks

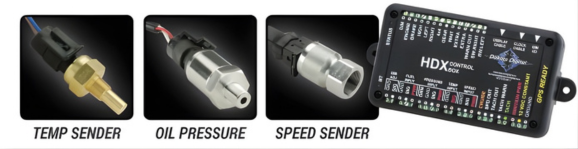

Included Sensors

Water Temperature
· 1/8" NPT ground-isolated sensor with a 10 ft harness

Oil Pressure
· 1/8" NPT solid-state sensor with a 10 ft harness

Cable Driven Speed Sensor / Generator
· Replaces Ford and/or GM style speedometer cables with a 10 ft harness
· Requires approximately 5" clearance between the cable drive output and any obstruction
· Part #130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed

Bushings
· Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings
· Also includes bushings for 12mm and 16mm x 1.5 threads

Calibration and Use

Control Box Dimensions

· 5.5" x 3.5" x 1"

Pushbutton Control

· All HDX Series instrument systems include LED-lit onboard capacitive touch pushbuttons through the gauge face
· Provides quick and consistent access to all functions in driving mode or setup menu
· Button feedback is displayed through the TFT message center or included buzzer
· Remote-mounted switches can be wired in if more accessible based on seating position
· System can also be fully configured through the Bluetooth app for Android and Apple devices
· Download the free app, sync your device, and access menu navigation and real-time gauge readouts for diagnostics or secondary display

Calibration

· All calibration settings are handled through onboard capacitive touch switches or the Bluetooth app
· Speedometer and fuel level calibration are typically completed through a few button presses and a short test drive
· If using GPS-50-2, speedometer calibration is not required

Manuals:

Wiring and Setup Manual
