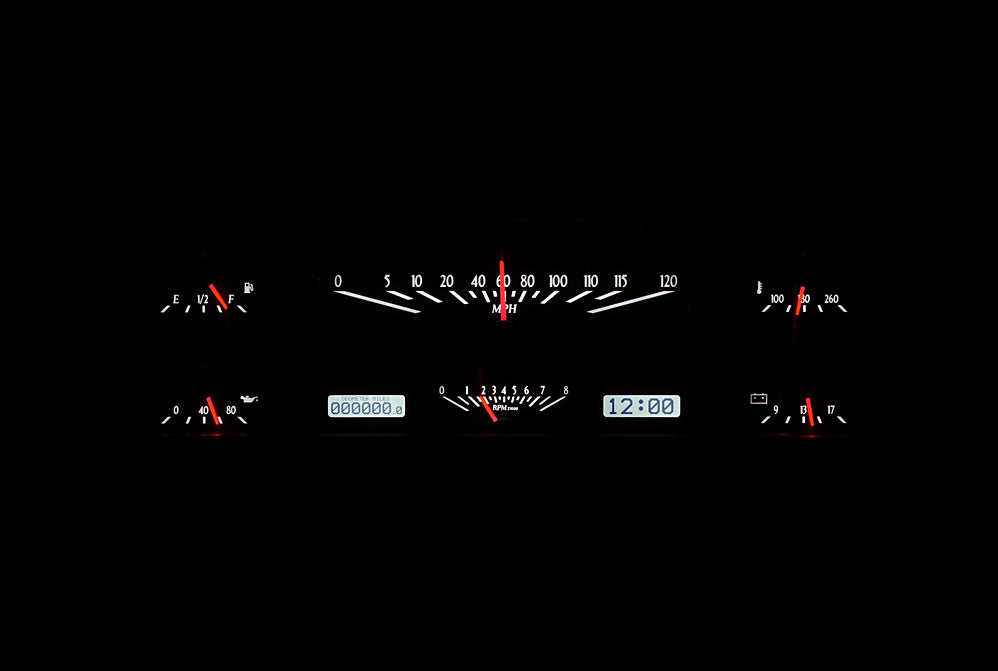

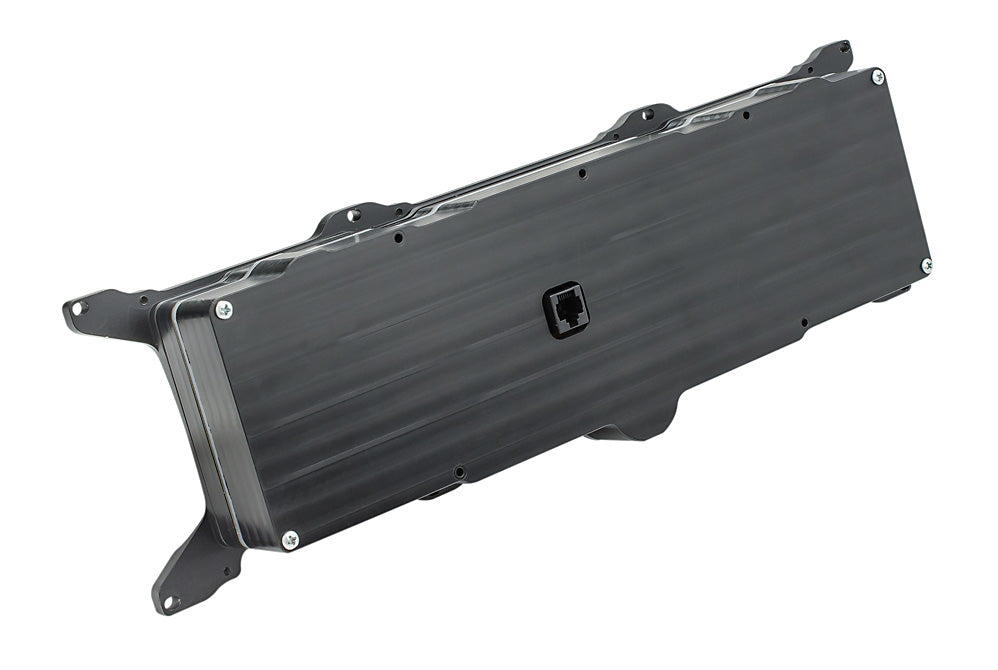

1967- 72 Ford Pickup VHX Instruments

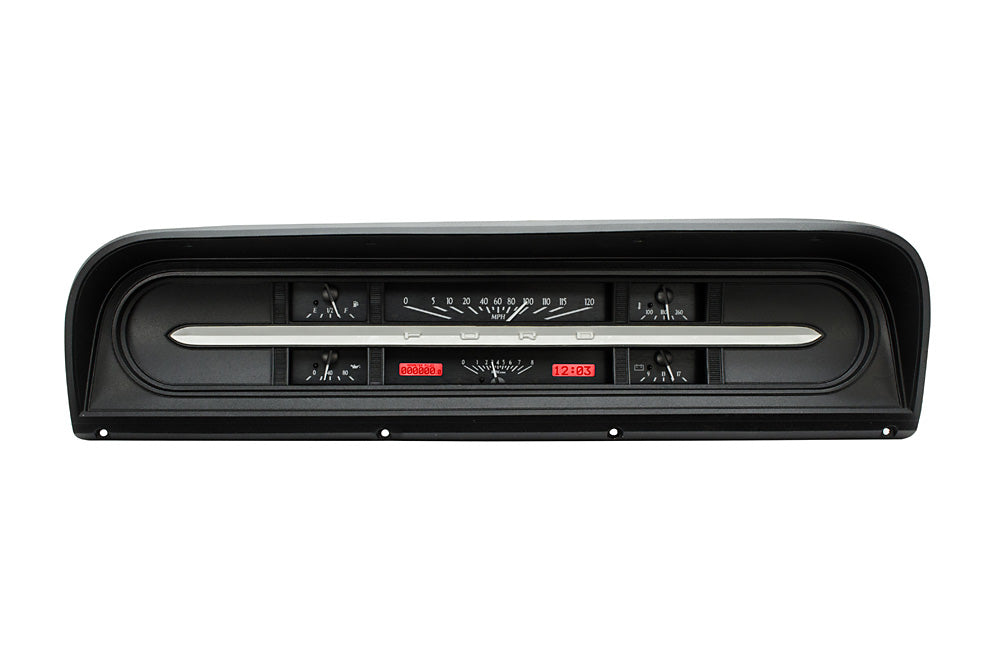

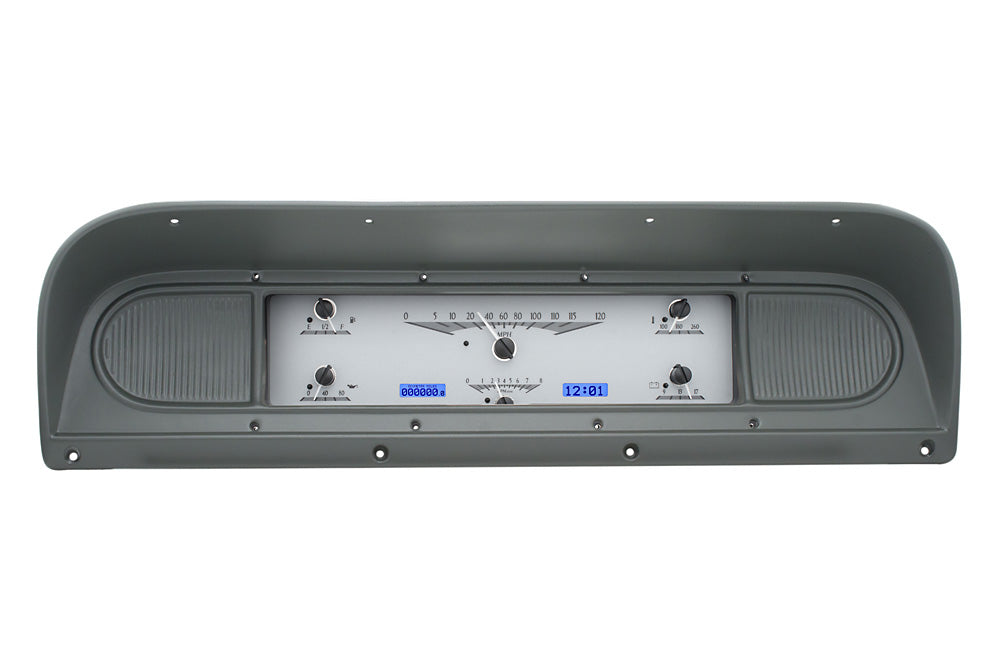

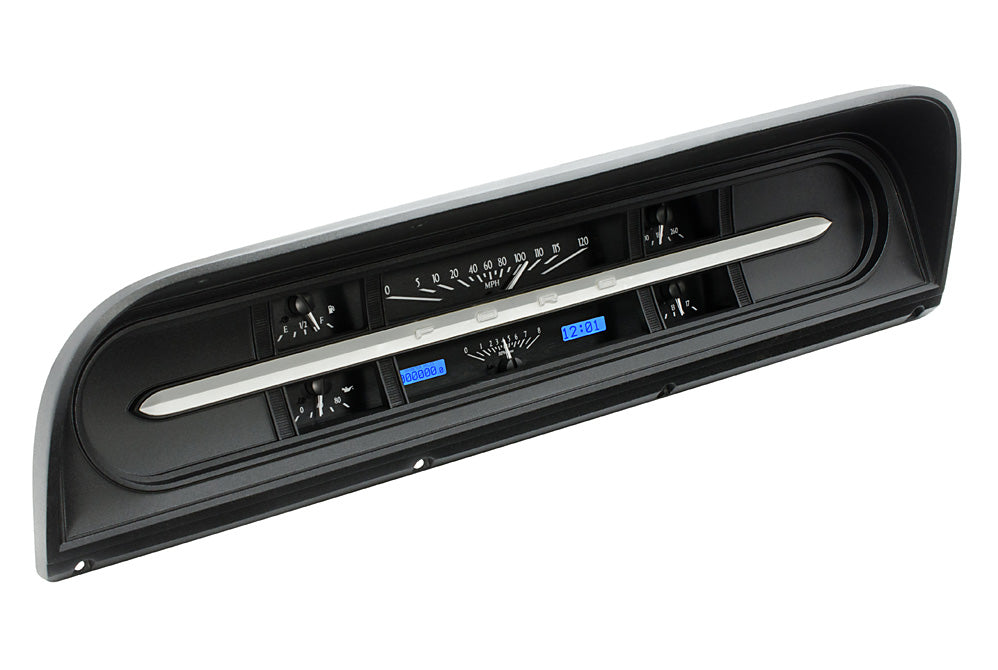

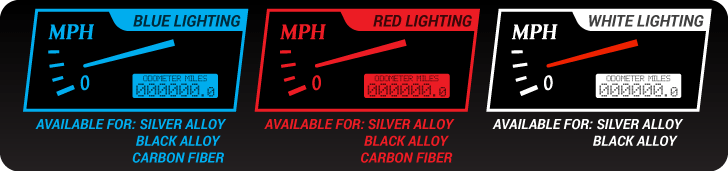

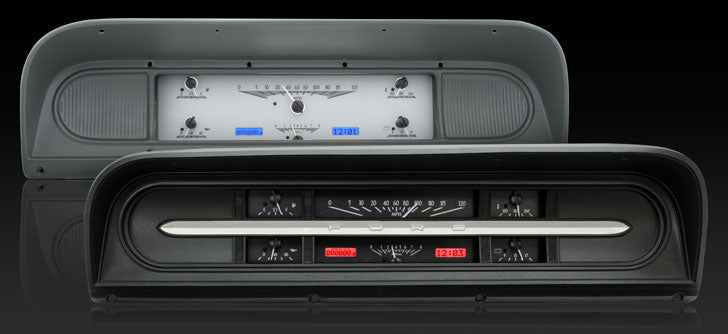

No longer playing second fiddle to the same-year Chevy, your ’67–72 F100 can enjoy the latest in instrumentation technology. Designed to work with either style of bezel (plastic or metal), this kit offers a simple drop-in installation. Choose from carbon fiber, silver, or black alloy gauge faces, paired with red, blue, or white LED backlighting for a modern update to a classic hauler.

Fully lit needles, backlit faces, and highly visible LCD message centers are just a few of the features that set the VHX Series apart from traditional instrumentation. Behind the scenes, micro-controlled precision stepper motors, solid-state sensors for unmatched accuracy, and user-customizable display feedback deliver performance you don’t normally see. All of this is backed by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.

Engineered and manufactured at Dakota Digital’s facility in Sioux Falls, South Dakota, the VHX Series has redefined modern instrumentation for classic trucks.

Bezel not included, shown for visual and presentation purposes only. The system uses an OEM or reproduction steel or plastic bezel.

Specifications

Analog Gauges

Speedometer
· 0–120 MPH (optional metric version 0–195 km/h)

Tachometer
· 0–8,000 RPM

Oil Pressure
· 0–80 PSI

Water Temperature
· 100–260°F (optional metric version 40–120°C)

Fuel Level
· E, 1/4, 1/2, 3/4, F

Voltmeter
· 9–17 VDC

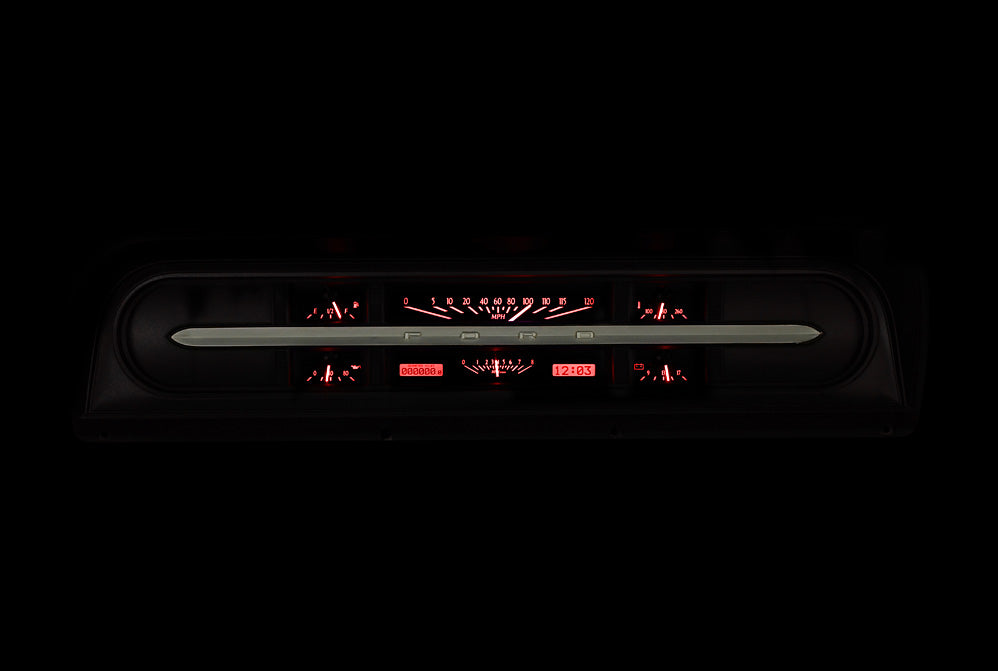

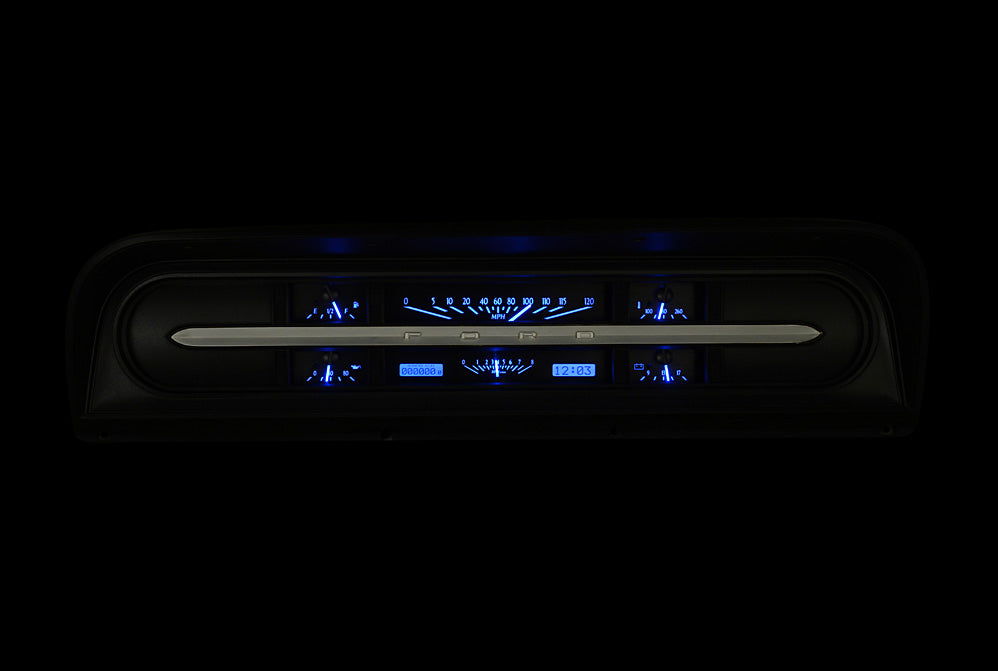

Lighting

· Backlit technology provides precise illumination for quick visibility
· Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by LEDs behind the gauge face

Digital Message Centers

Standard Displays
· Odometer (one-time user settable, million mile)
· Dual (A/B) trip meter (0–9,999.9)
· Clock (12 hour)

Performance Meters
· 0–60 MPH timer (0–100 km/h)
· 1/4 mile time
· 1/4 mile end speed (trap speed)
· High speed recall
· High RPM recall

Digital Gauges

· Speedometer (0–255 MPH/km/h)
· Tachometer (0–9,900 RPM)
· Oil pressure (0–100 PSI displayed in 1 PSI increments)
· Water temperature (100–300°F / 40–150°C displayed in 1° increments)
· Voltmeter (9–17 VDC)
· Fuel level (0–99% full)

Lighting (Digital Displays)

· Auto-contrasting LCD display for visibility in bright sunlight
· LED backlighting at night to match and complete the look

Built-in Indicators

Indicators
· Turn signals (left/right)
· High beam
· Check engine
· Parking brake
· Cruise control (on / on & engaged when equipped)
· Gear position (optional GSS-3000 sensor required)
· 4x4 (when equipped)
· Wait to start (when equipped)

Note:
· Not all OEM indicator lamp functions will be replaced
· Additional indicators can be repurposed from unused ones if needed

Included Sensors

Water Temperature
· 1/8" NPT ground-isolated sensor with a 10 ft harness

Oil Pressure
· 1/8" NPT solid-state sensor with a 10 ft harness

Cable Driven Speed Sensor / Generator
· Replaces Ford and/or GM style speedometer cables with a 10 ft harness
· Requires approximately 5" clearance between the cable drive output and any obstruction
· Part #130011 (sold separately) allows relocation when additional clearance is needed

Bushings
· Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings
· Includes bushings for 12mm and 16mm x 1.5 threads

Control Box Dimensions

· 5.5" x 3.5" x 1"

Calibration

Pushbutton Control
· Dakota Digital instruments are programmed and operated using pushbuttons
· Mount included pushbuttons in a convenient and accessible location
· Used to calibrate speedometer, set cylinder count, and configure fuel level gauge
· Once set up, the same buttons provide access to the Digital Message Centers and their features

Manuals:

Wiring and Setup Manual

---

Quick Start Guide

---

Mounting Manual

---
